DFS Dockable Lobe Filling Machine

  • Quick change out of wetted parts
  • Fills water thin to viscous products
  • Bottom up nozzle movement
SKU: 12


The Filamatic® Digifil, or DFS, Dockable Lobe Filling System accomodates a wide variety of applications including Pharmaceutical, Diagnostic, Cosmetic/Personal Care, Specialty Chemical, Food, and Household as well as a wide range of container shapes and sizes. The DFS liquid filler can handle products of high (creams, lotions, mascara), moderate (detergent, syrups, shampoo), and low (alcohol, water-thin liquids) viscosities. Best suited for moderate to large fills (50ml to gallons) with fill accuracies of +/- 1% or better. For a variety of options, there are multiple Rotary Lobe Pumps, models, and sizes offered.

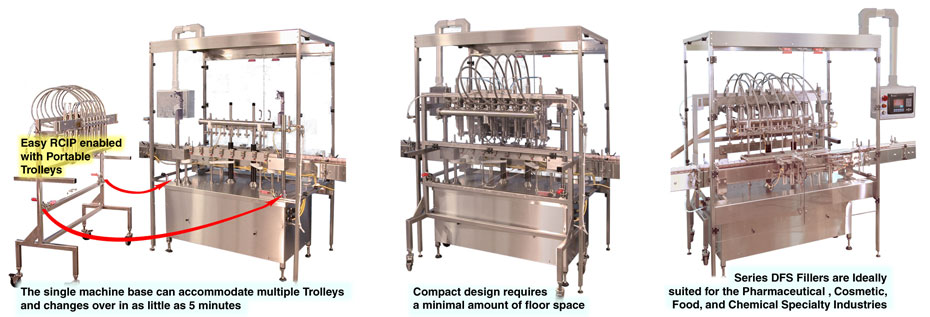

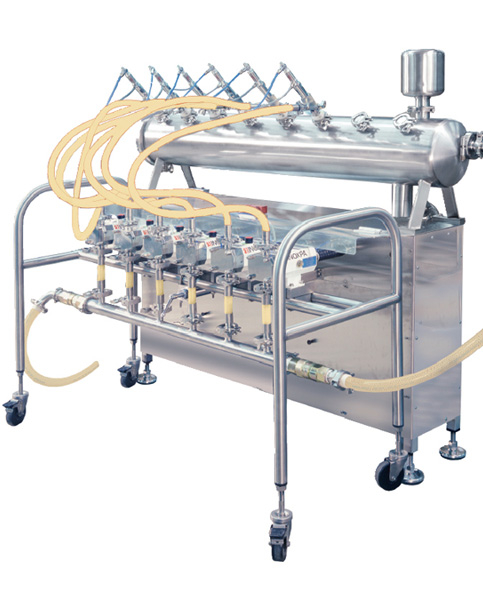

Three frame sizes are available to handle up to 12 Lobe Pumps for fill rates of 10 to 200 cpm. The Dockable Trolley System is a removable trolley containing the metering systems that allows you to changover in less than five minutes. This liquid filler has interlocked safety enclosure constructed of Lexan and stainless steel and a simple fluid pathway that allows for CIP (Clean In Place) or remote CIP.
