DAB-5 Series Medium Duty Filling Machines

  • Doubles the production rate when compared to our AB-5 model
  • Filling speed adjustable up to 35 cycles per minute
  • Fill volumes range of 1ml-130 ml
  • Ideal for applications that require dispensing two different liquids at different fill volumes
  • Can be easily converted to our Econofil automated filling system if your production speeds increase to the level of needing automation.
SKU: 102

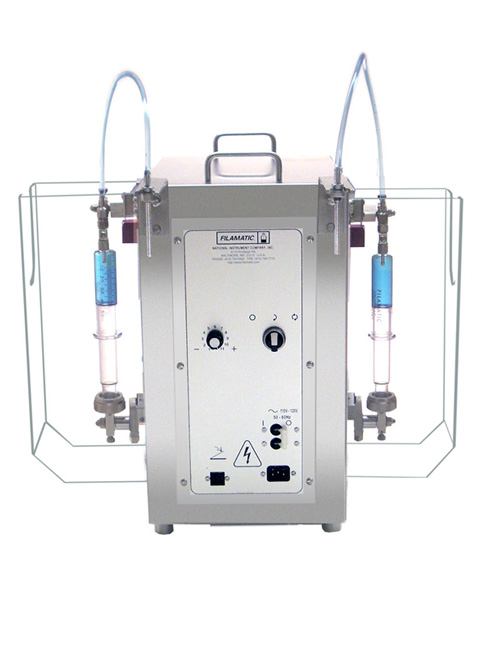

The FILAMATIC® DAB-5 Bench top medium duty filling system is a semi-automatic, medium duty liquid filler, ideal for repetitive dispensing of liquids from water-thin to semi-viscous, including molten products, and products with small particulates. The DAB Series can accommodate fill volumes ranging from 1ml to 130ml with the ability to mix and match pumps and nozzles for optimal versatility and flexibility.

This dual nozzle filling machine incorporates a variable speed electrical gearmotor drive, which turns the crankshaft that drives a volumetric piston pump known as a “Filling Unit”. The Filling Units are accessories offered to dispense a wide range of liquids and are made from either glass or stainless steel. The DAB-5 operates at a maximum rate of 35 RPM. Ideal for OEM Applications, CE Marked for the European market, and air operated models for hazardous environments. Another feature of this multi-nozzle filling system allows the user to dispense two different liquids at different fill volumes.

The Model DAB-5 delivers fill speed at a max rate of 35 RPM or 70 bottles per minute theoretically. Ideal for fill volumes from 3ml-130ml. When filling a semi viscous liquids such as MCT oils, lotions, essential oils etc. We recommends a 60ml capacity pump with a fill volume range of 6ml-60ml. If purchasing a 130ml pump with the DAB-5 we recommend this size for aqueous liquids only. These recommendations are based on the max torque that the DAB-5 delivers.
